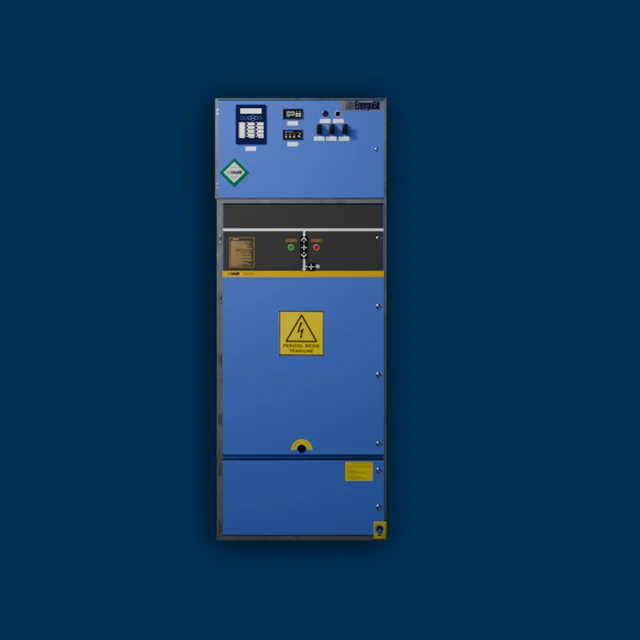

MOD24DS modular cells are designed for use in medium voltage switchboards within MV/LV transformer substations in distribution power systems, as well as in subscriber transformer substations.
Personalized offerThe modularity of the MOD24DS range extends to their internal structure, allowing these cells to adapt and evolve in line with the customer’s ideas, needs and requirements.
The MOD24DS medium-voltage switchgear range fully meets the requirements of Regulation no. 573/2024 on fluorinated greenhouse gases. They are equipped with disconnectable circuit breakers that use vacuum as the extinguishing medium and air as the insulating medium, providing an SF6-free solution.
The equipment variants enable the creation of complex configurations tailored to each specific application, offering functionalities such as line protection, transformer protection, metering, coupling, or combined line and metering functions (integrating current and voltage transformers within the same medium-voltage switchgear).
Expanding a medium voltage switchgear previously produced and supplied by EnergoBit is achievable while adhering to F-Gas Regulation 573/2024. The MOD24DS range of modular secondary distribution switchgear is designed to ensure compatibility with the MOD6 range of modular secondary distribution switchgear.
Caracteristice electrice
|
Rated voltage |
kV |
12 |
24 |
|
|
Power Frequency Withstand Voltage 50 Hz 1min. (kV ef.) |
Between phases and to earth |
kV |
28 |
50 |
|
Across isolating distances |
kV |
32 |
60 |
|
|
Rated Lighting Impulse Withstand Voltage 1,2/50 ms (kV) |
Between phases and to earth |
kV |
75 |
125 |
|
Across isolating distances |
kV |
85 |
145 |
|
|
Rated current |
A |
630 – 1250 |
||
|
Rated short time withstand current (3s) |
kA |
16-20 |
||
|
Making capacity |
kA |
40 |
||
|
Frecvency |
Hz |
50 |
||
|
Internal classification |
IAC |
A(FLR) |
||
|
Protection degree |
IP3X -external enclosure of the panel IIP2X –internal part of the panel
|
|||
